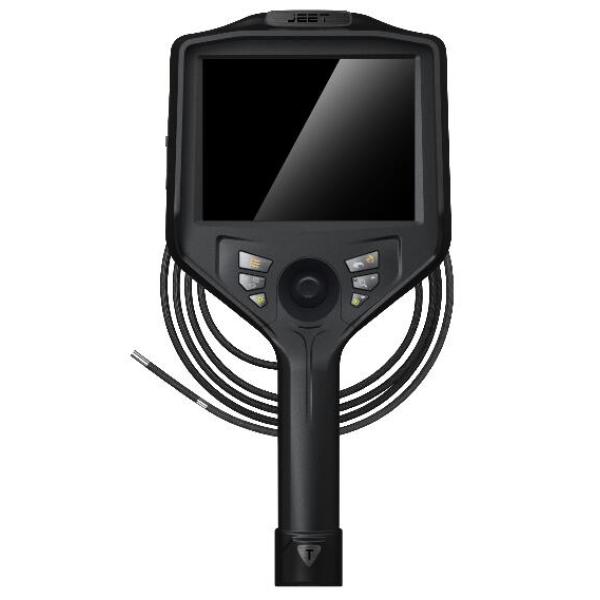

T51X Series 2.2mm 2-Way Articulating Videoscope, Joystick Videoscope, Pipeline Inspection Camera

Categories	Measuring Endoscopes
Brand	Jeet Videoscopes Manufacturer
Model	T51X-2210
Probe Diameter(mm)	Φ2.2
Camera Pixels	300,000
Image Resolution	640×480
Video Resolution	640×480
DOF	3mm-50mm/5mm-80mm
FOV	90°/120°
Viewing Direction	0° front view/ 90° sideview/ front view& sideview
Light Source	Front ceramic light/ Rear-mounted optic fiber cold
FOB port	Shenzhen
Terms of Payment	D/P, Western Union, T/T
Update Time	Jan 4,2025

Contact Now

Favorites

Detail Information

Intelligent Software

Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection needs.

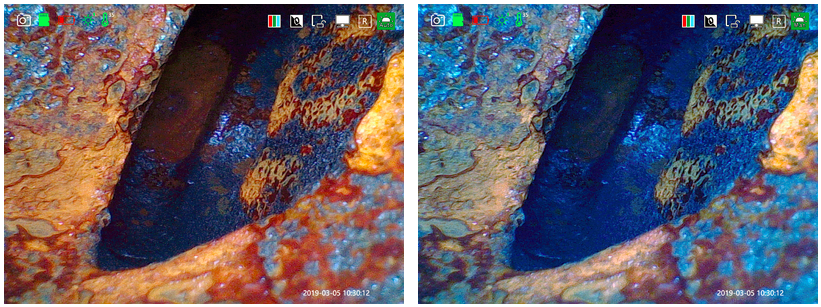

White Balance: Auto white balance with strong color reduction; manual-control white balance according to inspection needs.

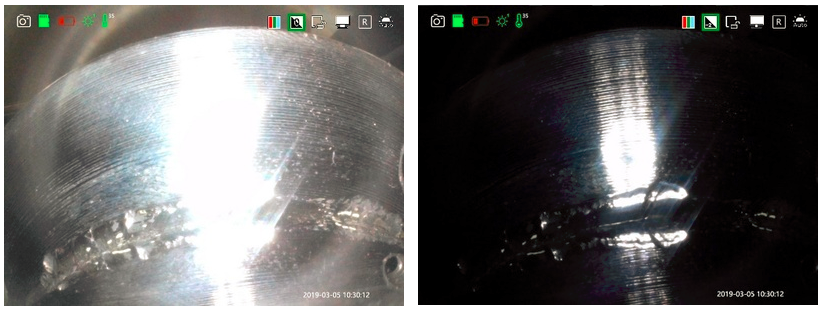

Exposure Setting: exposure suppression--the polished object is also inspected clearly; exposure compensation--when checking large cavity, it can be more effective and clearer.

Normal Mode: HD image effect.

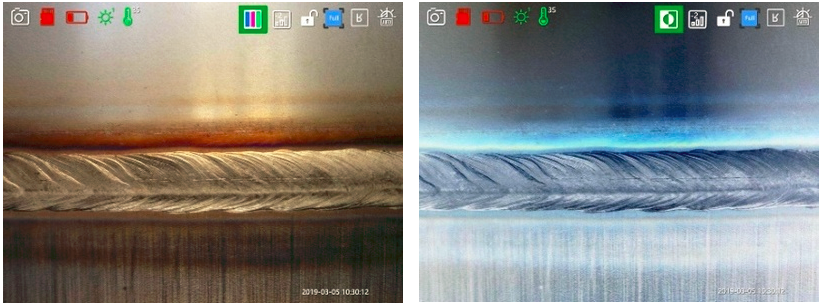

Negative Film Mode: enhance the ability to compare and analyze the internal defects of the inspected object.

Flexible Articulation Control

2-way articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long distance transmission ensures bending angle ≥100° , even the tube reaches to 10 meters.

Tube System	Probe Diameter(mm)	Φ2.2
	Camera Pixels	300,000
	Image Resolution	640×480
	Video Resolution	640×480
	DOF	3mm-50mm/5mm-80mm
	FOV	90°/120°
	Viewing Direction	0° front view/ 90° sideview/ front view& sideview dual lens
	Light Source	Front ceramic light/ Rear-mounted optic fiber cold
	Illuminance	Maximum: 50000+Lx 1~9 levels adjustable light
	Tube Length	1.5m/3.0m/5.0m/30m (customized for other length)
	Protecting Device of Durability	42mm buffer protection device between tube and handle
	Articulation	2-way / 360° joystick-control articulation
	Bending Angle	Maximun:190°
	Probe Positioning	Damping positioning & articulation lock device
	Wi-Fi Transmission	Image transmission to Mobile phone, computer by Wi-Fi(optional)
Monitor System	Display	5.1" color IPS display, all sight viewing angle, sunshade design
	Display Resolution	1280*960
	Zoom In/Out	8X
	Language	English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
	White Balance Suppression	5 levels adjustable
	White Balance	Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
	Image Effect	Negative film/ black & white/standard
	Temperature Indication	High temperature alarm （optional）
	IP Level	Probe/tube: IP67
	Software Function	Playback, image parameters adjust and rotate.
	Structure	Hand-held integrated design.
	Image/Video Format	JPEG/MOV
	Comparative Measurement	Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
	Data Port	HDMI video output, Micro USB port with water &dust proof device.
	Working Time	≥8h
	Battery Capacity	3.7V，3200mAh×2
	Power Charge	DC5V, 1A
	Weight	≤0.8Kg
	Compatibility	Interchangeable monitor and tube with different diameters
Accessories	Standard Configuration	Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
