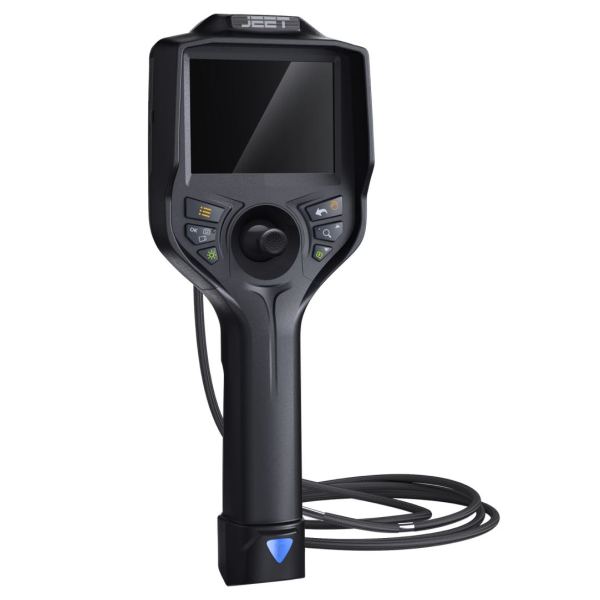

T35H Series Mega Pixels Industrial Endoscope/ 4 Way Articulating Borescope/ 6mm Video Endoscope

Categories	Measuring Endoscopes
Brand	Jeet Videoscopes Manufacturer
Model	T35H-6015
Probe Diameter(mm)	Φ3.8/Φ6.0
Camera Pixels	1,000,000
DOF	5-80mm//10-100mm/50mm-∞
FOV	120°
Light Source	LED (optional: optic fiber)
Illuminance	It can be up to 20,000 Lx/It can be up to 100,000
Articulation	360° joystick control
Bending Angle	Maximun:190°（8m tube:100°）
Update Time	Nov 28,2024

Contact Now

Favorites

Detail Information

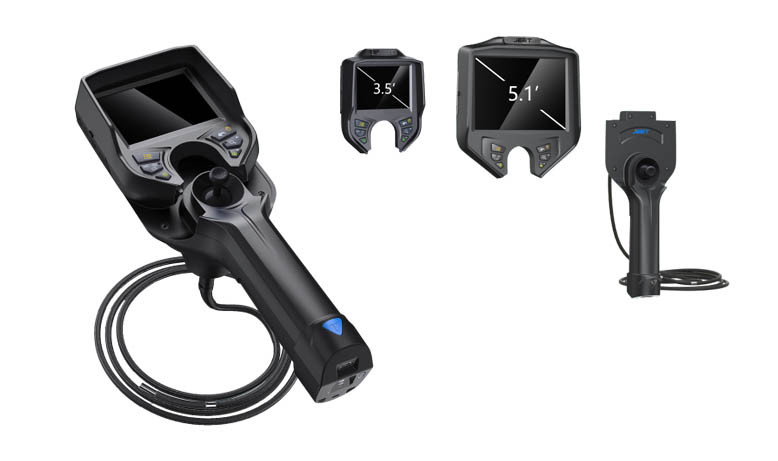

Interchangeable display

Independent module design for display screen and Tube, 3.5-inch and 5.1-inch display screens can be selected at will, and the operation is more intelligent and convenient.

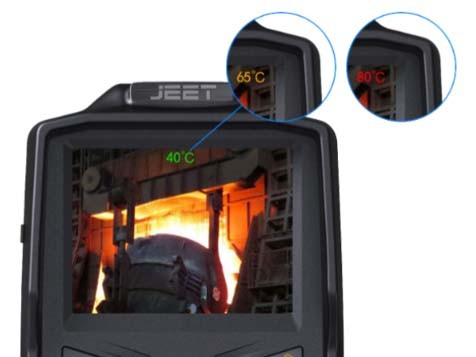

Alarm

High Temperature alarm function: 1. Yellow alarm when the temperature of testing environment is above 70℃; 2. Orange alarm when the temperature is above 80℃; 3. Red alarm and shutdown when the temperature is more than 90℃.

Output

Camera and video 1080P, 450 thousland, 1 million, 2 million pixels are optional; support HD video recording, high definition display, picture resolution up to 1920*1080.

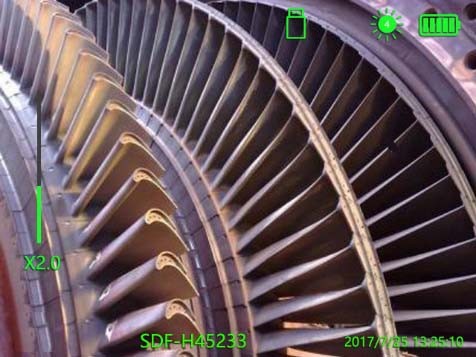

Real-Time Zooming

In preview mode, it supports real-time zooming, and the defect inspection is more intuitive.

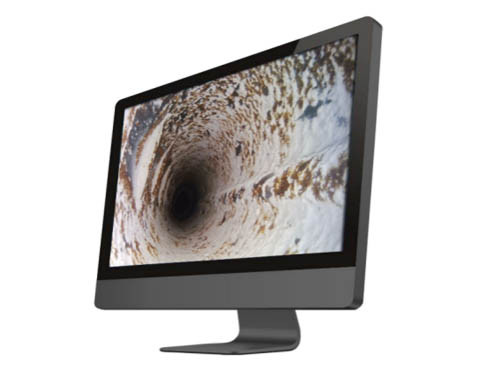

High Definition Display

Camera and video 1080P, 450 thousland, 1 million, 2 million pixels are optional; support HD video recording, high definition display, picture resolution up to 1920*1080.

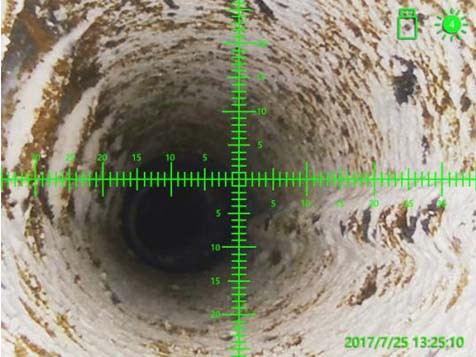

Scale

Defect size measurement and comparison coordinate display, available for review, more accurate auxiliary judgement for defect detection.

Multifunctional insert tube

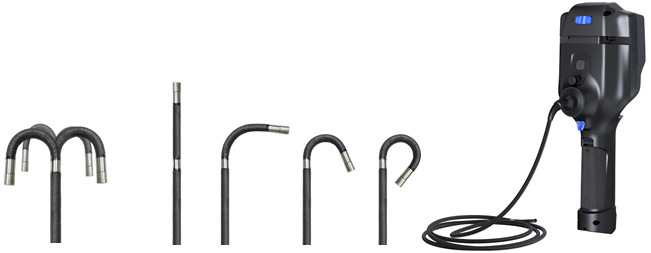

Articulation

360° all-way articulation, damping type positioning design, precise articulation locking technology, make the detection more accurate and efficient.

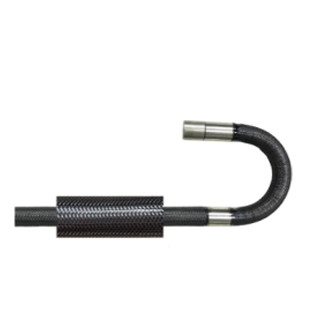

Wear Resistant Tube

5 layers of tungsten - braided tube; wear resistance; 20 times better than ordinary probe.

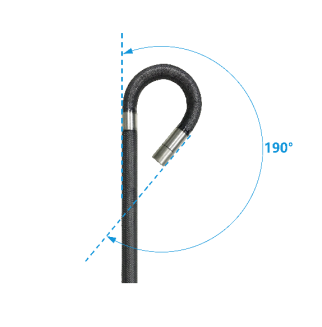

Bending

The maximum bending angle is up to 190℃.

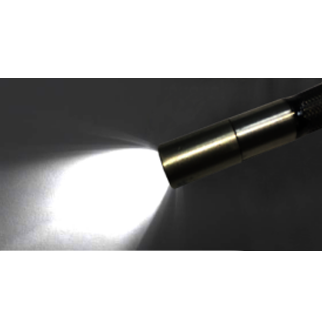

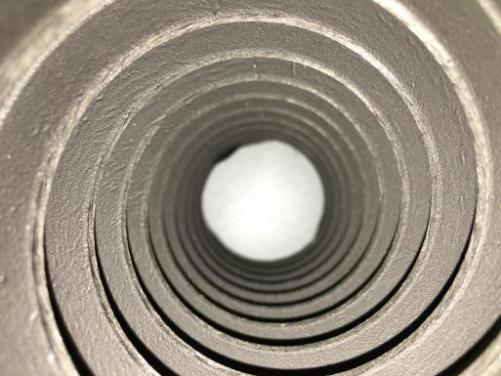

Illuminance

With super bright ceramic LED, the illuminance can reach to 1000000 Lx.

Working Time

Original dual battery design, 8 hours working time, real-time battery indication.

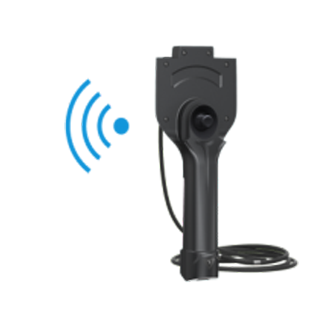

Wifi

The image can be outputted to HD display by HDMI or Wi-Fi.

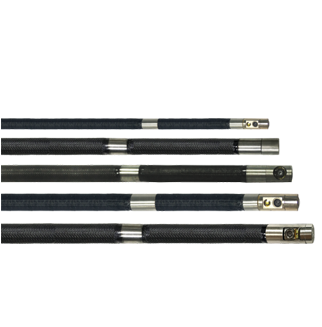

Interchangeable Tube

It is compatible with tubes from 3.8mm to 6mm diameter.

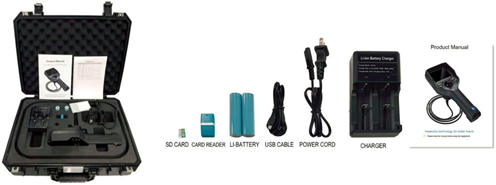

Packaging & Accessories

Multi-functional magnetic stand; Practical probe accessories to meet a variety of inspection requirements.

Quality Assurance

Professional manufacturer of asphalt machines. Our sales and R&D team have over 10 years’ experience to focus on asphalt distributor, synchronous pavement surface vehicles and other road machinery and equipment. Based on innovation

Application

T-Series mega pixels industrial endoscope are widely used in many fields, such as automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing, explosion-proof detection, etc.

Parameters

Tube System	Probe Diameter(mm)	Φ3.8	Φ6.0mm
	Camera Pixels	1,000,000
	DOF	5-80mm//10-100mm/50mm-∞
	FOV	120°
	Light Source	LED (optional: optic fiber)
	Illuminance	It can be up to 20,000 Lx	It can be up to 100,000 Lx
	Tube Length	1.0m/2.0m/3.0m/4.0m/5.0m (customized for other length)	1.0m/2.0m/3.0m/4.0m/5.0m/6.0m/7.0m/8.0m (customized for other length)
	Protecting Device of Durability	42mm buffer protection device between tube and handle
	Articulation	360° joystick control
	Bending Angle	Maximun:190°（8m tube:100°）
	Probe Positioning	Damping positioning (optional: articulation lock device)
Monitor System	Display	3.5 inches TFT LCD
	Image Resolution	1280×720
	Language	English / French / German / Italian / Spanish / Portuguese / Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian / Korean /Polish / Latvian
	Outer Case Material	Anti-fall engineering alloy material
	IP Level	Probe/tube: IP67
	Temperature Indication	High temperature alarm(optional）
	Structure	Hand-held integrated design
	Image/Video Format	JPEG/MOV
	Data Port	HDMI video output, Micro USB port
	Working Time	≥8h
	Zoom In/Out	4X
	Battery Capacity	3.7V，3200mAh×2
	Power Charge	DC5V，maximum current: 1A
	Weight	0.55Kg-0.8Kg
	Compatibility	Interchangeable monitor and tube with different diameters
Accessories	Storage	Standard TF card: 16G, Maximum: 32G
	Power Supply	Detachable lithium batteries
	Standard Configuration	Instrument case/ videoscope/ battery card reader/ TF card/charger/ USB cable/ manual
